Combination needle roller bearing

Description

The IMCB combination needle roller bearing consists of radial needle roller bearings and thrust bearings. They can withstand both radial and axial loads simultaneously. In applications, when other types of positioning end bearing configurations occupy too much space, or the axial load is too heavy, the speed is too high, or the bearing configuration with simple thrust washers lacks lubrication, it is particularly suitable to use combination needle roller bearings. The combination needle roller bearings provided by IMCB have the following three basic designs:

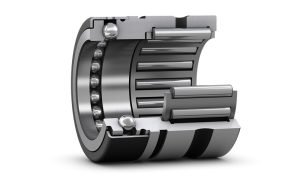

Needle roller/angular contact ball bearing

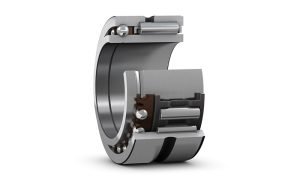

Needle roller/thrust ball bearing

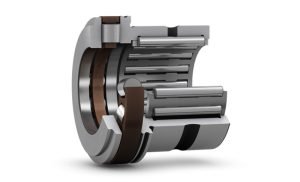

Needle roller/cylindrical roller thrust bearing

The supplementary lubrication interval for the radial and thrust components of the bearing must be calculated separately. The shorter interval between the two should be used as the standard.
