Outer spherical bearing with fastening screw

Description

Outer spherical bearing with fastening screw
Suitable for applications where the rotation direction is fixed or alternating.
Lock the two hexagonal set screws in the inner ring (UC series bearing spacing 62 °, all other bearings spacing 120 °) onto the shaft

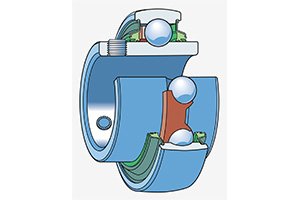

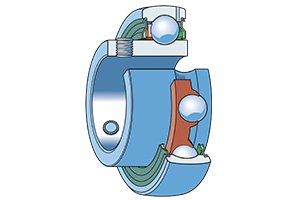

Basic bearing design
Can provide extension on one side of the inner ring (, bearing series YAT 2 and UC)
Can provide inner ring extension on both sides (, bearing series YAR 2)
Sealed on both sides (sealing solution) equipped with:
The YAT 2 series adopts reinforced standard seals on both sides (standard seals)
The YAR 2 series bearings adopt reinforced standard seals and additional stamped steel oil deflectors (standard seals with additional oil deflectors, YAR 2 series model suffix is 2F, UC series has no suffix) or stamped steel oil deflectors with rubber sealing lips (multiple seals, model suffix 2RF)
The outer ring comes standard with two lubrication holes, one on one side and spaced 120 ° apart
Non lubrication holes (model suffix W) can be provided as required.
IMCB has designed the YAR 2. -2DW/AG bearing series () to address the harsh operating conditions encountered in agricultural applications, such as combine harvesters and packers, harvesters and disc harrows. This type of bearing:
Equipped with patented five lip seal (five lip seal)
The outer ring does not have any lubrication holes
Bearings with galvanized inner and outer rings
Suitable for corrosive environments
We can provide extensions on both sides of the inner ring (bearing series YAR 2. -2LPW/ZM or YAR 2. -2RF/VE495).
Equipped with stainless steel set screws
Both sides are equipped with patented groove sealing structures made of food grade rubber (groove sealing and oil blocking ring), equipped with stainless steel frames and stainless steel oil blocking rings
Add food grade lubricating grease
No lubrication holes
Stainless steel bearing
Suitable for corrosive environments
We can provide extensions on both sides of the inner ring (bearing series YAR 2. -2LPW/SS or YAR 2. -2RF (GR)/HV).
All steel components are made of stainless steel, including bearing rings, steel balls, steel frames for seals and oil deflectors, and set screws
Both sides are equipped with patented groove sealing structures made of food grade rubber (groove sealing and oil blocking ring), equipped with stainless steel skeleton and stainless steel oil blocking ring
Add food grade lubricating grease
No lubrication holes
Compared with high-quality carbon chromium steel bearings of the same size, the dynamic load bearing capacity is lower
